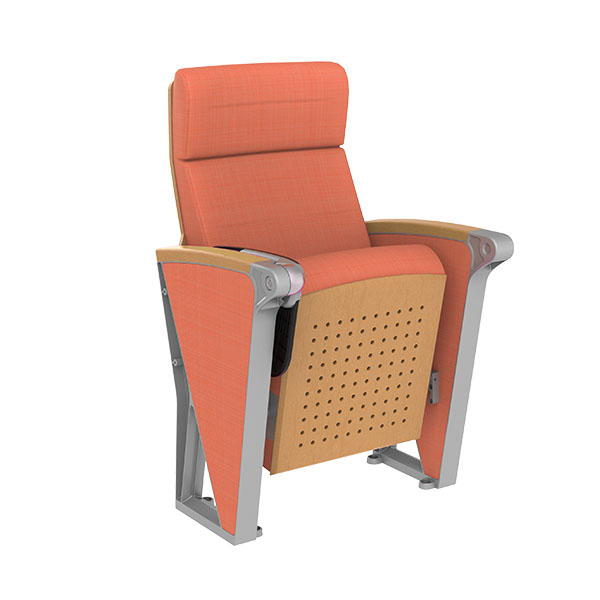

Arthur Ace L-A07W

Arthur Ace L-A07W

Arthur Ace auditorium seating is designed and crafted with higher standards for comfort, style, and long-lasting performance. With strong aluminum leg frame support and an innovative antic-panic writing tablet, it is a true multipurpose classic.

  • OUTERBACK AND SEAT PAN: Plywood with wood veneer finish
  • BACK & SEAT CUSHION: Ergonomic cushion shaped with lumbar support
  • TIP-UP SEAT MECHANISM: Combination of spring and damping
  • ARMREST: Stowed ABS writing tablet with aluminum support
  • LEG: Aluminum frame support for long-lasting durability

Request a quote

Description

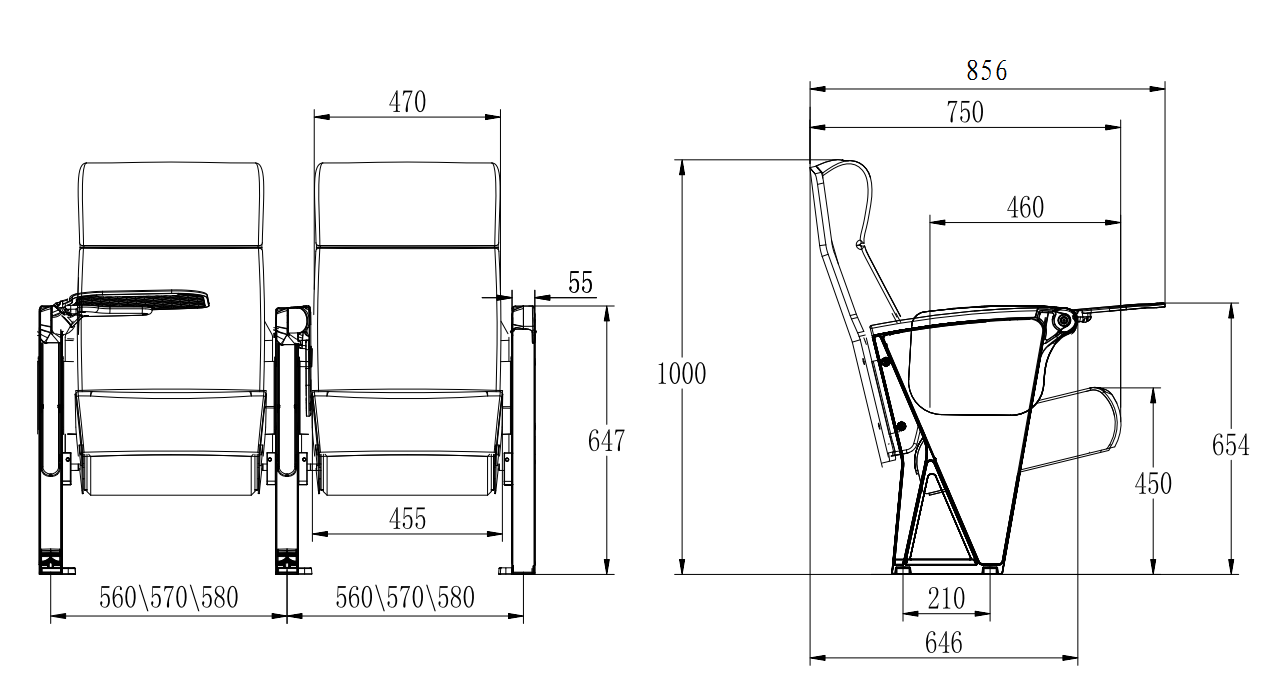

L A07W DIMENSION
Description MM INCH
Center to center (C/C) 560/570/580 22/22.4/22.8
Seat cushon width 455 17.9
Back cushon width 470 18.5
Inner seat depth 460 18.1
Depth from arm to rear back 646 25.4
Overall depth (tablet closed) 750 29.5
Overall depth (tablet open) 856 33.7
Floor-to-seat height 450 17.7
Floor-to-tablet height 654 25.7
Floor-to-armrest height 647 25.5
Overall height 1000 39.4
