MOLIO WOOD AXIS L-A12

MOLIO WOOD AXIS L-A12

MOLIO Wood Axis is designed for use in spaces where audience sightline, comfort and seating capacity maximization are needed. Its slim profile, 20 inches (51cm) center width and high resilient cushion enable this seat to perform in the most demanding of environments.

  • OUTERBACK & SEAT PAN: Plywood with wood veneer
  • SEAT & BACK CUSHION: Ergonomic and cold-molded foam cushion
  • TIP-UP SEAT MECHANISM: Spring and damping for quiet operation
  • ARMREST: Hardwood
  • LEG: Powder-coated steel leg
  • Available without leg used as telescopic seating

Request a quote

Description

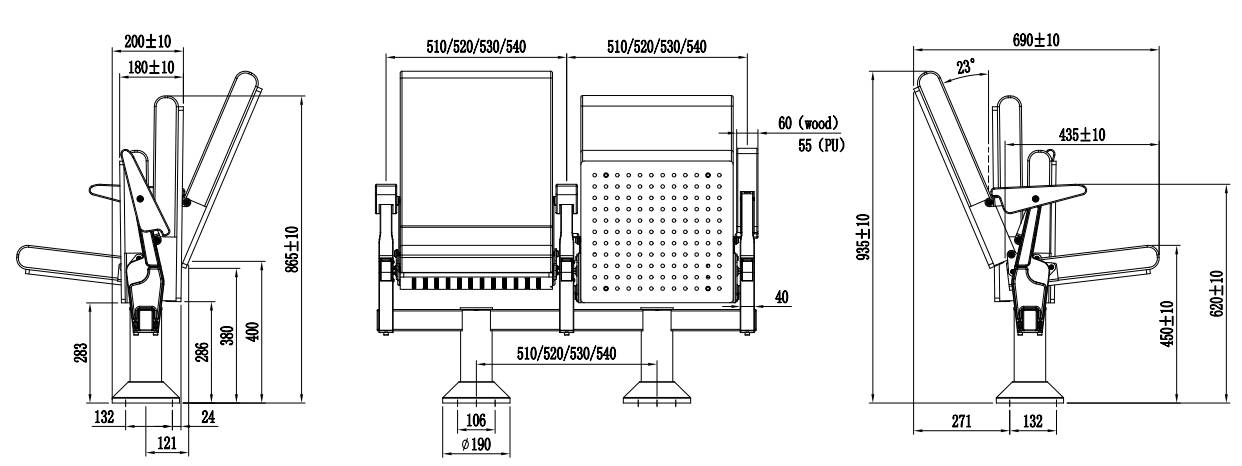

L A12 DIMENSION
DESCRIPTION MM INCH
C/C (armrest center to center) 510/520/

530/540

20/20.5/

20.9/21.2

Arm width 60 2.4
Overall depth with seat open 695 27.4
Overall depth with seat closed 180 7.1
Inner seat depth 435 17.1
Floor-to-seat height 445 17.5
Floor-to-armrest height 615 24.2
Overall back height with seat open 935 36.8
Overall back height with seat closed 865 34

MOLIO Auditorium Seating Collection

Options and benefits tailored to your needs and requirements – from essentials to added premiums.

Model

  •
  • Outerback & seat pan
  • Tip-up mechanism
  • Arm

MOLIO Wood Axis

  • Plywood with wood veneer finish, higher back design
  • Spring and damping
  • Hardwood

MOLIO Wood Plus

  • Plywood with wood veneer finish, curved wood panel
  • Counterweight
  • Hardwood

MOLIO Wood

  • Plywood with wood veneer finish
  • Counterweight
  • Hardwood

MOLIO Upholstered

  • Full upholstered
  • Counterweight
  • PU
