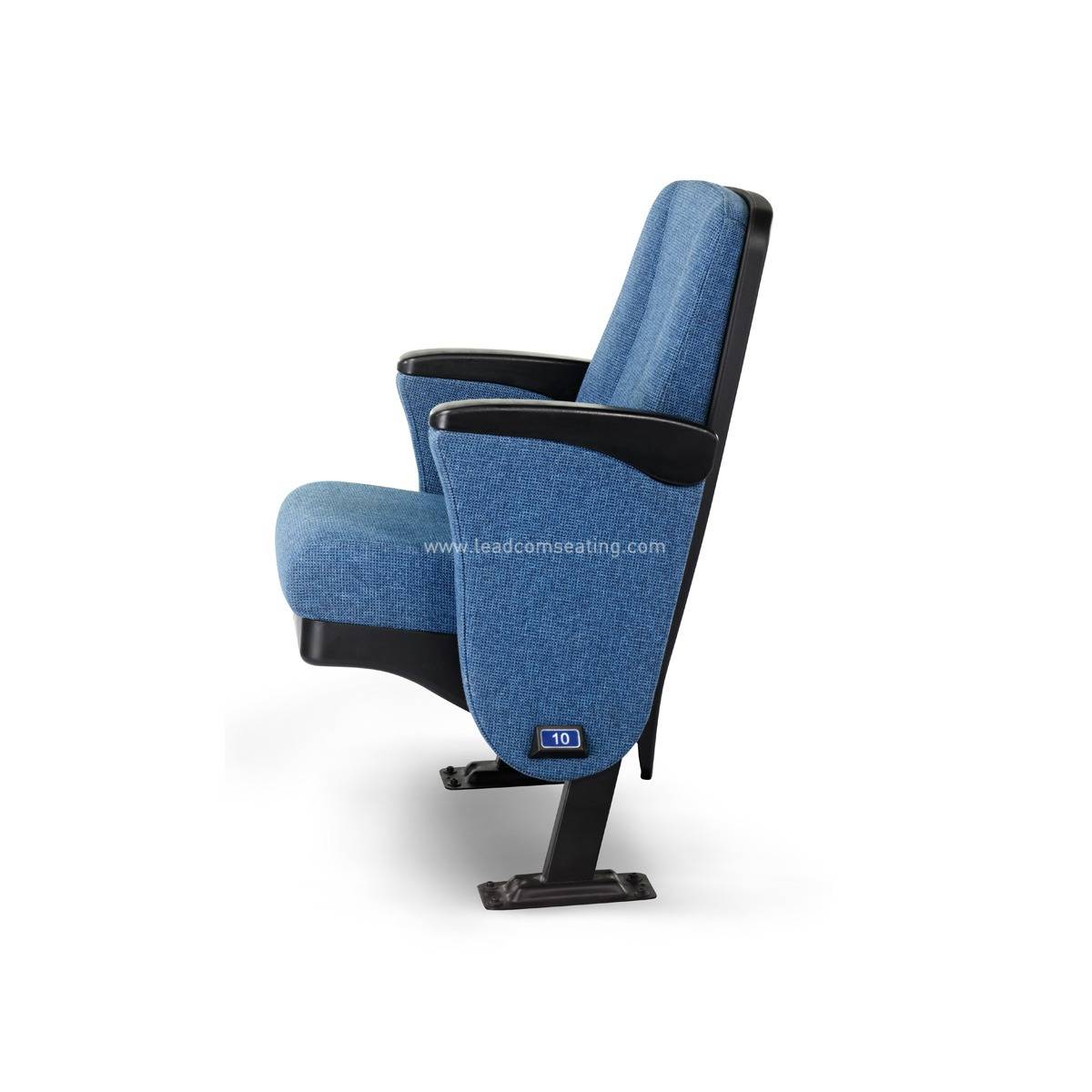

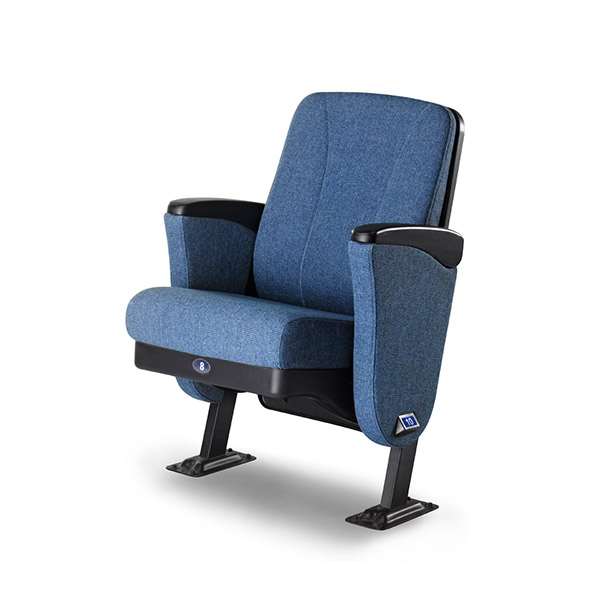

LOUISVILLE PLASTIC LS-10601P

LOUISVILLE PLASTIC LS-10601P

The elegance and graceful design of LOUISVILLE makes this classic line an all-time good seller for auditoriums and churches. It features superior comfortable cushion and multiple choices of outerback, seat and arm designed for your specific needs.

  • OUTERBACK: Injection molded polypropylene
  • BACK & SEAT CUSHION: Ergonomic cushion shaped with lumbar support
  • SEAT PAN: Injection molded polypropylene
  • TIP-UP SEAT MECHANISM: Counterweight for long-lasting operation
  • ARMREST: PP armrest, optional with ABS writing tablet
  • LEG: Strong steel structural support

Request a quote

Description

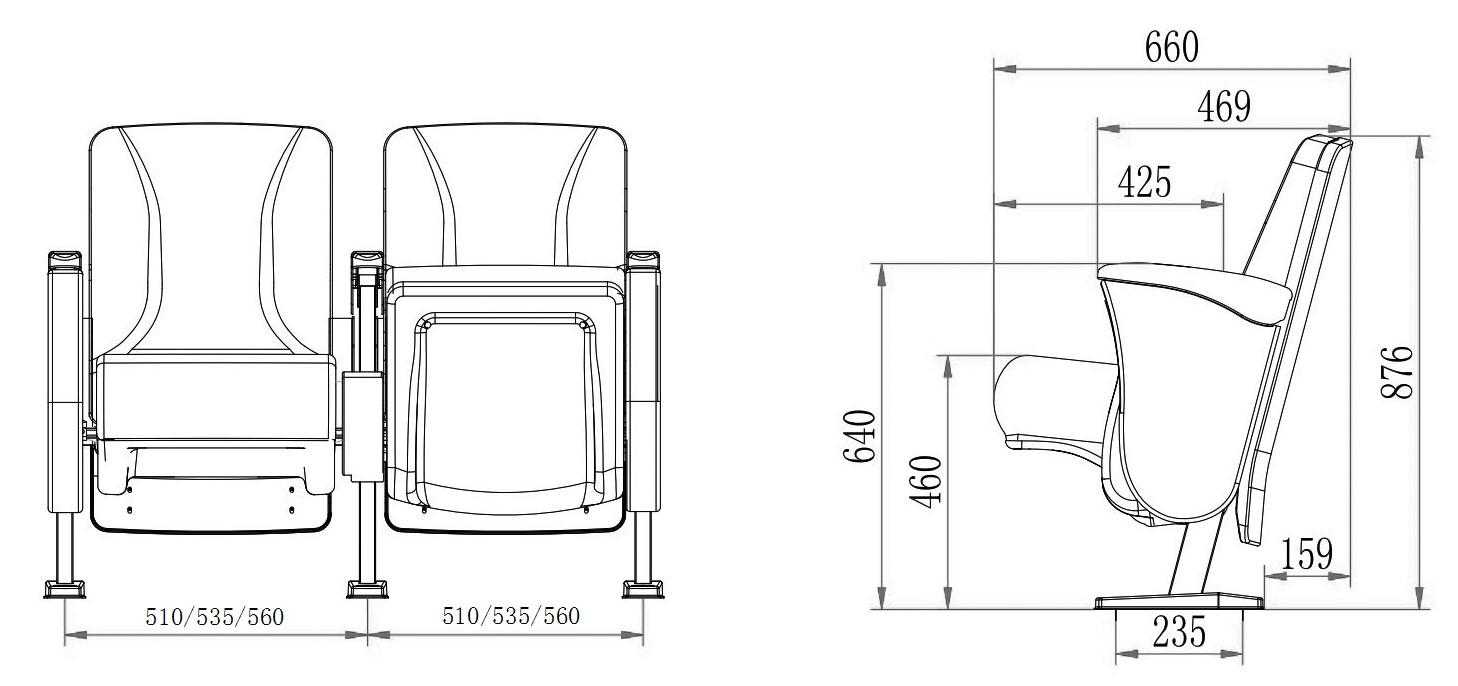

10601P DIMENSION
Description MM INCH
C/C (armrest center to center) 510/535/560 20/21/22
Overall back height 876 34.5
Arm width 64 2.5
Armrest to rear back depth 469 18.6
Floor to seat height 460 18.1
Floor to armrest height 640 25.2
Minimum row spacing 850 33.5
Recommended row spacing 900 35.4

Louisville Auditorium Seating Collection

Options and benefits tailored to your needs and requirements – from essentials to added premiums.

Model

  •
  • Outerback/seat pan
  • Tip-up mechanism
  • Arm
  • End panel
  • Writing tablet (optional)

Louisville Upholstery

  • Full upholstered
  • Counterweight or spring/damping
  • High-impact PP
  • Full upholstered
  • ABS

Louisville Plastic

  • High-impact PP
  • Counterweight or spring/damping
  • High-impact PP
  • Full upholstered
  • ABS

Louisville Wood

  • Plywood with wood veneer finish
  • Spring and damping
  • Hardwood
  • Plywood with wood veneer finish
  • ABS

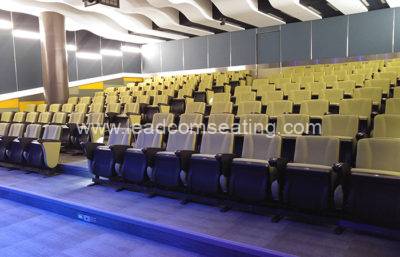

Product Installations
