Leighton Lite L-A01-1

Leighton Lite L-A01-1

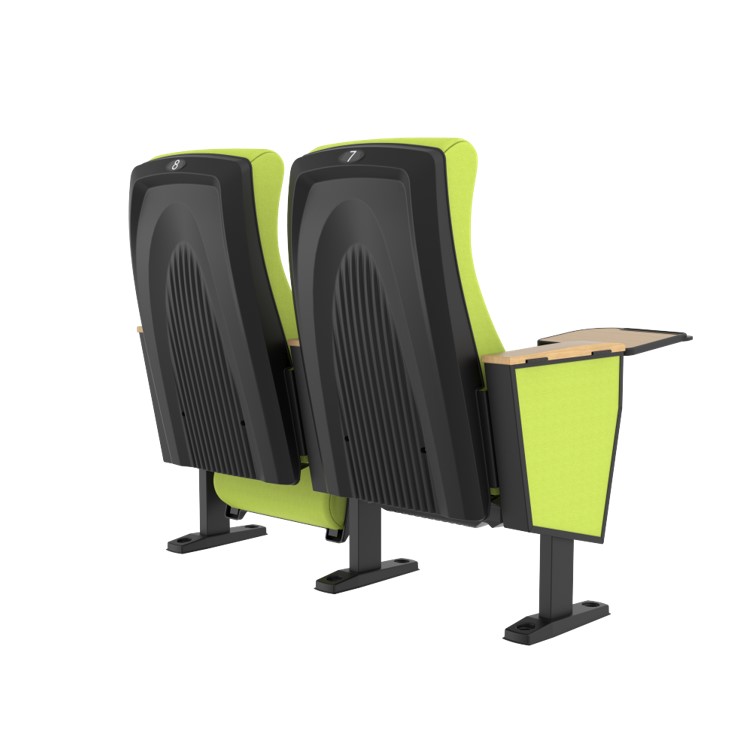

Leighton series Fixed Lecture Hall Chair & Auditorium Seats stands out for its great flexibility in different types of stanchions and multiple finishing options. Choosing from U shape, T shape or single pedestal to suit your specific needs.

The easily open and folded wood writing tablet adds functionality for informative purpose space, and the high-impact plastic outerback and seat pan make cleaning and maintenance easy.

  • OUTERBACK/SEAT PAN: Injection moulded polypropylene
  • BACK & SEAT CUSHION: Ergonomic cushion shaped with lumbar support
  • SEAT PAN: Injection molded polypropylene
  • TIP-UP SEAT MECHANISM: Dual spring
  • ARMREST: Hardwood armrest
  • LEG: Strong steel structural support, U shape, T shape available

Request a quote

Description

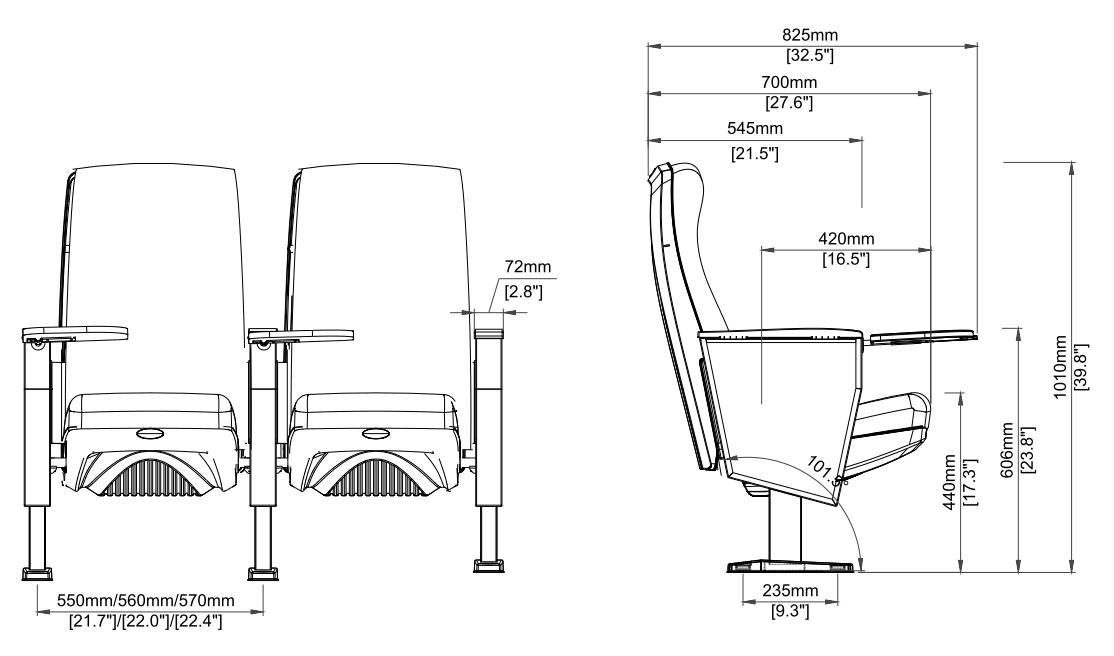

L A01 1 DIMENSION
DESCRIPTION MM INCH
C/C (armrest center to center) 550/560/570 21.7/22/22.4
Inner seat depth 420 16.5
Armrest to rear back depth 545 21.5
Overall depth with tablet open 825 34.5
Overall depth with tablet closed 700 27.6
Floor to seat height 440 17.3
Floor to armrest height 606 23.9
Floor to tablet height 615 24.2
Overall back height 1025 40.4
Minimum row spacing 850 33.5

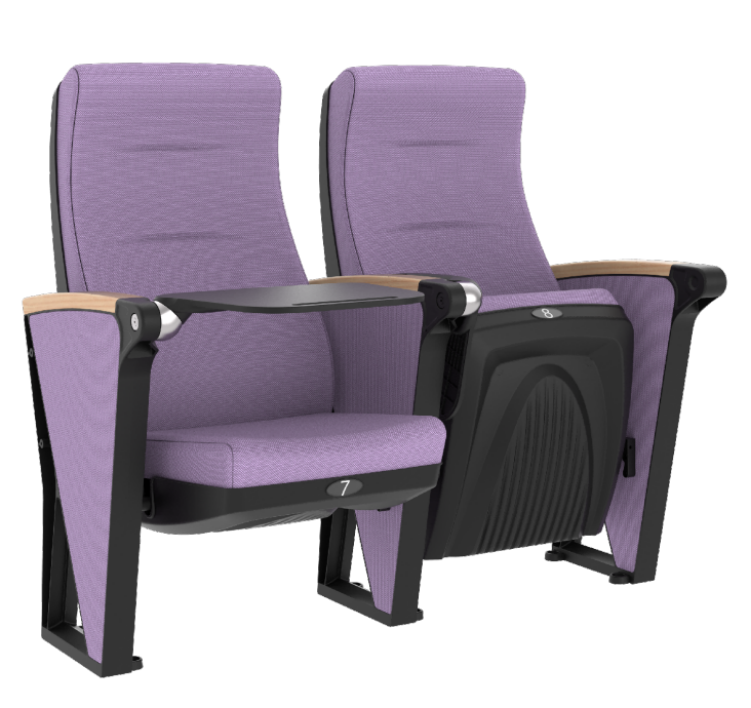

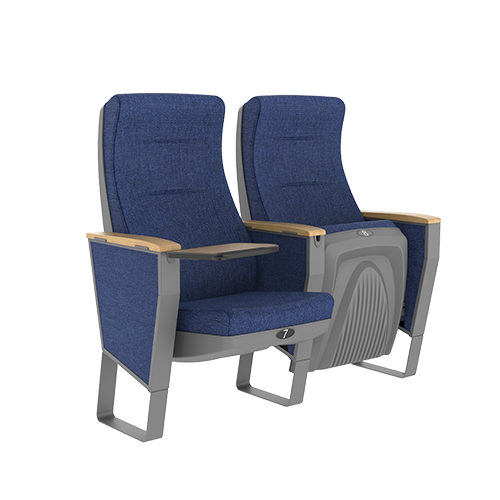

Leighton Auditorium Seating Collection

Options and benefits tailored to your needs and requirements – from essentials to added premiums.

Model

  •
  • Outerback/ seat pan
  • Tip-up mechanism
  • Leg
  • Writing tablet

Leighton Lite

  • High-impact PP
  • Dual spring
  • Steel, T-shape
  • Housing melamine tablet

Leighton Signature

  • High-impact PP
  • Dual spring
  • Steel, U-shape
  • Housing melamine tablet

Leighton Elite

  • High-impact PP
  • Dual spring
  • Aluminum
  • Housing melamine tablet

Leighton Luxe

  • High-impact PP
  • Dual spring
  • Aluminum
  • Anti-panic, ABS

Leighton Ace

  • High-impact PP
  • Dual spring
  • Aluminum
  • Stowed, ABS
